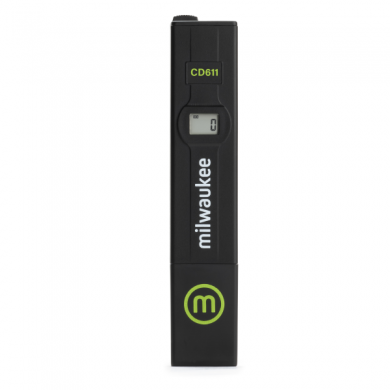

EC Meter CD611

The CD611 economy EC meter measures electrical conductivity (EC) and is an easy-to-use, low-cost instrument for quickly measuring accurate EC values.

It is used in sectors such as hydroponics, water treatment, fish farming and agriculture, among others.

Includes

• CD 611 EC meter

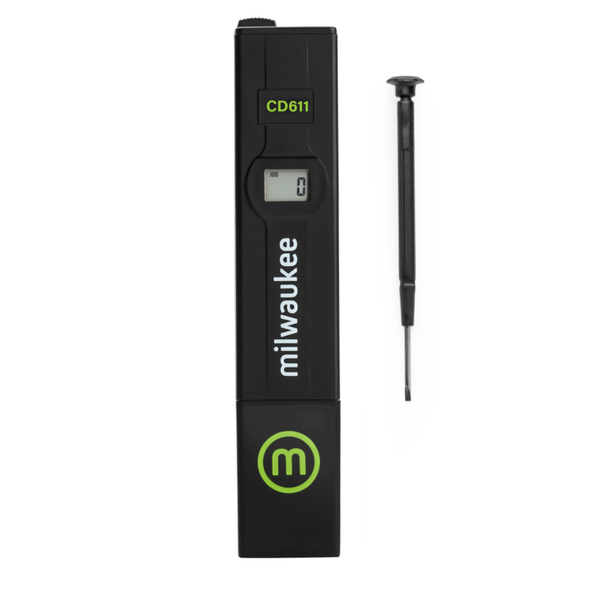

• Calibration screwdriver
• Battery

It comes with

• Automatic temperature compensation
• A protective cap, calibration screwdriver, batteries and instructions for use in two languages

Operating the meter

Remove the black cap and switch on the meter with the ON / OFF button located on top.

• Immerse up to the limit mark and wait for the reading to stabilise
• The meter automatically compensates for temperature variations
• After use, rinse the electrode in water to keep it clean
• The value shown on the screen must be multiplied by 100 to give a direct reading in mS/cm

Calibration

• Buy calibration solution here
• The calibration procedure is simple and quick
• Immerse the meter up to the limit mark in the EC calibration liquid (M10031)
• Wait for the reading to stabilise and, with the screwdriver on the screw
• Adjust to 1.4 (multiplied by 100 gives an EC of 1413)
• The meter is calibrated

Replacing the batteries

When the EC meter will not switch on or the display fades, open the battery compartment and replace the 4 x 1.5V batteries, observing the correct polarity.

The batteries can only be replaced correctly using those specified in the manual.
